Description

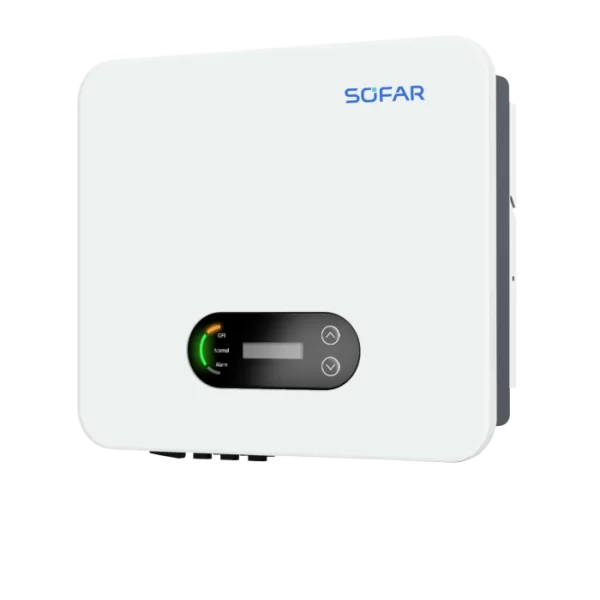

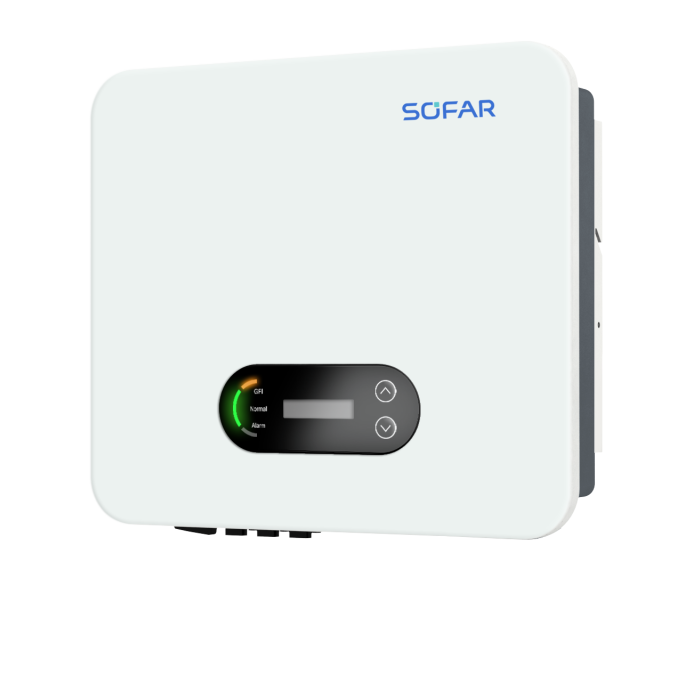

Sofar 10kW Three Phase Solar Inverter 10KTLM-G3

• Power Capacity: Offers a rated output of 10kW and 10kVA apparent power, suitable for large homes or small businesses.

• Triple MPPT Design: Ensures optimal solar harvesting from arrays facing different directions or partially shaded areas.

• DC Oversizing Capability: Supports 150% oversizing to maximise PV array potential and generation.

• Low Start-up Voltage: Starts at 90V and operates efficiently between 80V to 550V MPPT voltage range.

• Peak Efficiency: Reaches up to 98.1% with a European efficiency of 97.3% for consistent performance.

• High Module Support: Compatible with large, high-efficiency solar panels (500W+).

• Natural Cooling: Fanless design ensures silent operation and extended inverter life.

• Comprehensive Protection: Features DC polarity protection, anti-islanding, leakage current and ground fault monitoring.

• Surge Protection: Integrated SPD—Type II for DC side and Type III for AC side.

• User Interface: Includes an LCD screen, Bluetooth, and mobile app for easy setup and monitoring.

• Connectivity: Offers RS485 and Wi-Fi (optional) for remote monitoring and system control.

• Robust Build: IP65-rated for outdoor installation; measures 468×380×187 mm and weighs 18.5 kg.

• Standards Compliance: Certified to Australian (AS/NZS 4777.2:2020) and international safety and performance standards.
