Description

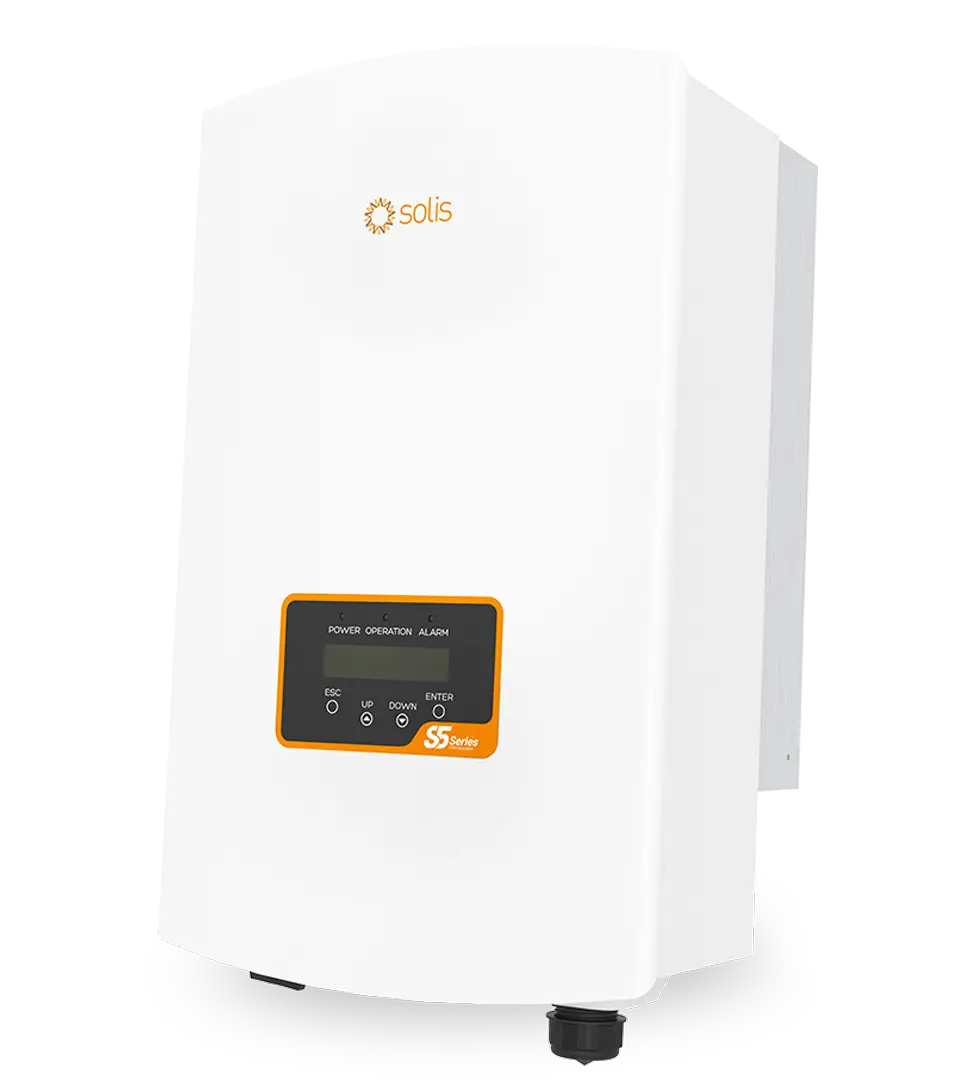

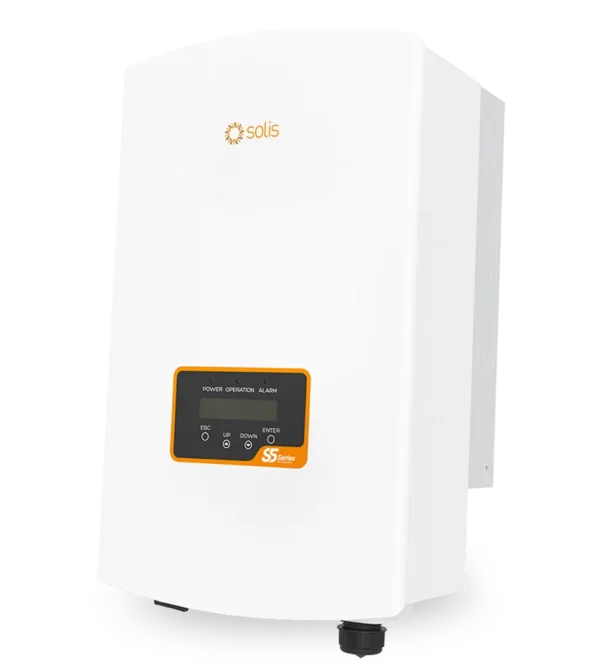

Solis S5 3kW 1Ph Inverter 1 MPPT (S5-G21P3K-M)

• Rated Output Power: 3kW single-phase output ideal for residential energy systems.

• High Efficiency: Delivers 97.1% maximum efficiency and 96.7% EU efficiency for optimized performance.

• Advanced MPPT Performance: Operates across a wide 80–500V MPPT voltage range with precise tracking algorithms.

• Robust Input Capacity: Manages up to 14A input current and 22A short-circuit current.

• Comprehensive Safety Features: Integrated AFCI, DC polarity reversal protection, surge protection, and anti-islanding features.

• Integrated DC Switch: Simplifies maintenance and boosts overall system safety.

• Compact Build: Lightweight (7.7 kg) and compact dimensions (310 x 373 x 160 mm) with IP65 rating for durability.

• Natural Cooling Technology: Silent operation with noise emissions below 20 dB(A).

• Smart Communication Interfaces: RS485 built-in with optional Wi-Fi and GPRS connectivity.

• Regulatory Compliance: Adheres to AS/NZS 4777.2:2020, IEC standards, and EMC requirements.
